- FON-315 uses a high-efficiency motor drive and a 4-wheel track feeding system to avoid leaving marks on the surface, ensuring more accurate and faster feeding.
- It features a hybrid stepper motor, high-speed microprocessor, and integrated circuit control, providing stable operation and low failure rates.
- It is equipped with a fully touch-screen computer control system. The user interface is clear and intuitive, making operation simple and easy to understand.
- The quick-change conduit system ensures smooth, vertical cutting edges without burrs. It guarantees precise cutting results for materials of different diameters.
- It is specially designed for cutting materials in the automotive harness industry, including corrugated pipes, automotive fuel hoses, PVC pipes, silicone hoses, and rubber hoses.
Automatic Tube Cutting Machine

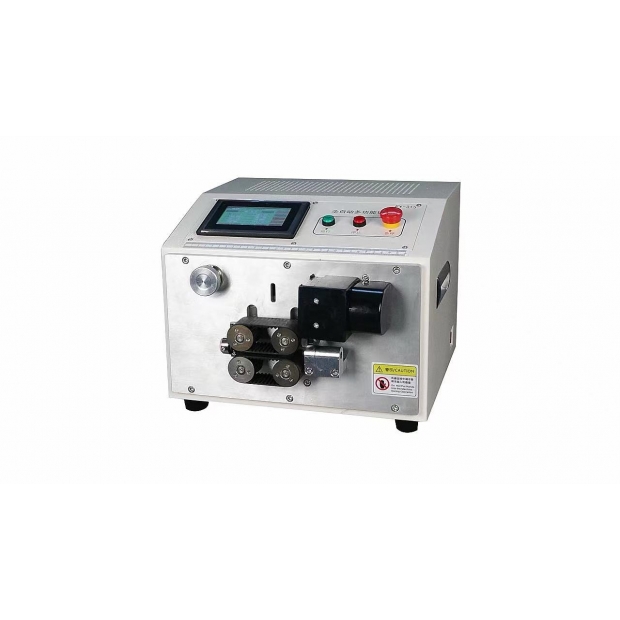

FON-315 Tube Cutting Machine
FON-315 Tube Cutting Machine
Model: FON-315
Dimension: L360*W405*H295(mm)
Power: 220V 50/60Hz
Weights: 25kgs
Cutting Dimension: Ø3 - Ø15mm
Cutting Length: 1-9999mm
Productivity: 10000 – 14000pcs/h
Dimension: L360*W405*H295(mm)
Power: 220V 50/60Hz
Weights: 25kgs
Cutting Dimension: Ø3 - Ø15mm
Cutting Length: 1-9999mm
Productivity: 10000 – 14000pcs/h
